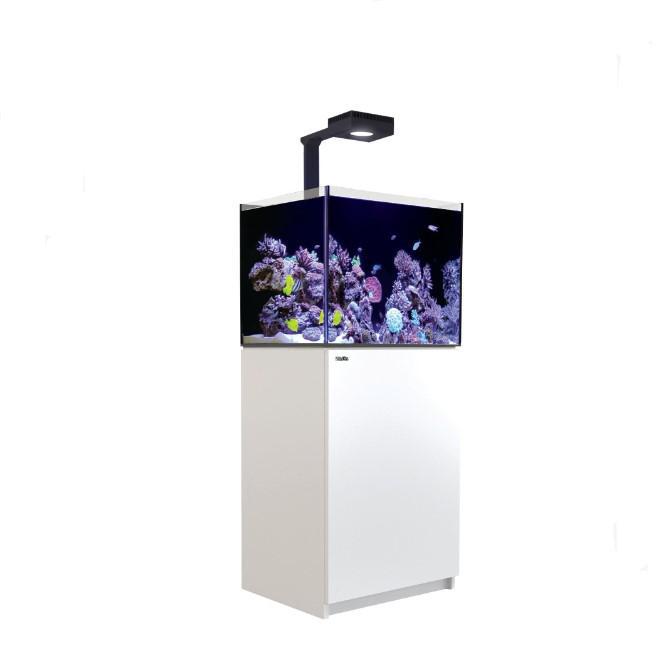

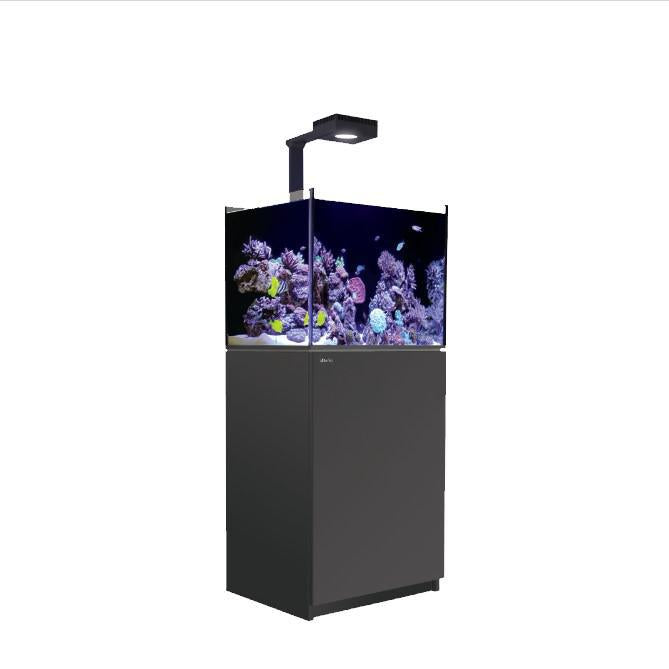

Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm
Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm
Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm
Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm
Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm

Red Sea REEFER 170 G2+ Deluxe - Sumped Reef System w/ ReefLed 90 (x1) & Arm

Red Sea

  • $ 1,919.00
    Unit price per

NO SHIPPING. In-Store Only Product - Please Call For Availability for Local Pickup Only

Shipping calculated at checkout.







Red Sea REEFER G2+™ Systems

Rimless reef ready systems for advanced hobbyists

NANO | 170 | 250 | 350

The REEFER models are 50cm (20″) wide and are available in 60cm (24″) long/170 liter (34gal) capacity, 90cm (36″) long/250 liter (65 gal) capacity or 120cm (47″) long/350 liter (91 gal). These tanks sit on HPL coated MDF Marine Spec cabinets.

REEFER™ Concept

Red Sea’s REEFER series of reef systems provide advanced hobbyists with a solid foundation for building a fully featured reef or marine aquarium.

The REEFER series combines a contemporary, rimless, ultra-clear glass aquarium with a stylish cabinet and a comprehensive water management system including a professional refugium ready sump with integrated automatic top-up and Red Sea’s unique silent down-flow system.

The REEFER series is designed for ease of operation while enabling the advanced hobbyist to install an unlimited choice of lighting, filtration, circulation, and controllers to create a uniquely customized system.



Features include:

  • (1) ReefLED 90 & Mounting Arm
  • Rimless, ultra-clear, beveled edge glass aquarium
  • Elegant, marine-spec, laminated, plywood cabinet with adjustable feet
  • Assembly-ready piping – no gluing required
  • Professional refugium ready sump with adjustable height skimmer chamber *
  • Silent, regulated down-flow system with emergency overflow
  • All REEFER G2+ models come with the state-of-the-art ReefATO+, which keeps your water volume and salinity stable, and includes an accurate temperature monitor as well as a highly sensitive leak detector. *Reservoir not included.
  • Micron filter bags and filter media cups *

* Note: not all features are available on REEFER™ 170/XL200, the color of interior cabinet and piping may vary.


The REEFER G2+ systems incorporate the following great new features:

  • ReefMat® ready sump that has a pull-out filter-sock/media-cup compartment and a universal connector on the downpipe, for a truly Plug & Play ReefMat installation.
  • The ultra-clear, beveled-edge glass has an increased thickness of up to 0.75" or 19mm with silicone protection strips on the bottom & side joins.
  • The marine-spec cabinets are extra fortified with all models being made from plywood. All REEFER 625 and above have a "Floating tank" feature supported by an aluminum edge.
  • All systems come with a standard 3-year warranty plus highly affordable 4th & 5th year extended warranty plans.
  • All REEFER 350 and above (47" or 120cm and longer) now have dual return outlets, creating even better water distribution.
  • All models include a new and improved high precision valve and an enlarged inlet section on the downflow pipe that enables easy regulation and near-silent operation.
  • Extra connectors that support both metric and USA standard pipes are available for those who wish to customize their sump piping.

REEFER™ Series Technical Data

 REEFER™ G2 Models
Specs
NANO
170
250
350
Main Features
Ultra clear front glass (mm)
8 (5/16″)
10 (3/8”)
12 (1/2”)
12 (1/2”)
Ultra clear side glass (mm)
8 (5/16”)
10 (3/8”)
12 (1/2”)
12 (1/2”)
Bottom glass
10 (3/8″)
10 (3/8″)
10 (3/8″)
12 (1/2”)
Built in surface skimmer
Yes
Yes
Yes
Yes
Integrated automatic top up system
Yes
Yes
Yes
Yes
System Volumes
Display tank water volume (L)
77 (21 gal)
130 (34 gal)
204 (54 gal)
275 (73 gal)
In cabinet sump water volume (L)
28 (7 gal)
35 (9 gal)
40 (11 gal)
70 (18 gal)
Total system water volume (L)
105 (28 gal)
165 (43 gal)
244 (65 gal)
345 (91 gal)
System Dimensions
Display tank length (cm)
45 (18″)
60 (24″)
90 (36″)
120 (47″)
Display tank height (cm)
45 (18″)
50 (20″)
53 (21″)
53 (21″)
Display tank width (cm)
45 (18″)
50 (20″)
50 (20″)
50 (20″)
Total system height with cabinet (cm)
132 (52″)
137 (54″)
140 (55″)
140 (55″)
Sump Dimensions
Water height (cm)
20 (8”)
20 (8”)
17-23 (6.7-9”)
17-23(6.7-9”)
Skimmer chamber without
Refugium wall (cm)
24 x 21 (11.8″x9.8″)
30 x 25 (11.8”x9.8”)
42 x 25 (26.5”x9.8”)
42 x 36 (16.5”x14.2”)
Skimmer chamber with
Refugium wall (cm)
24 x 21 (11.8″x9.8″)
30 x 25 (11.8”x9.8”)
25 x 25 (9.8″ x 9.8″)
25 x 36 (9.8″ x 14.2″)
Pump chamber (cm)
24 x 12 (11.8″x4.7″)
30 x 12 (11.8”x4.7”)
20 x 17 (7.8”x6.7”)
26 x 24 (10.2”x9.4”)
Return Pump
3/4” threaded hose barb – Pipe Int. Dia
16mm (5/8”)
16mm (5/8”)
16mm (5/8”)
16mm (5/8”)
Recommended flow (lph)
(pump not included)
2000
(530 gph)
2000
(530 gph)
2500
(660 gph)
3000
(790 gph)
Deluxe Series Features
ReefLED®
1 Unit RL90
(90W)
1 Unit RL90
(90W)
2 Units RL90
(180W)
2 Units RL90
(180W)
New Special Features
Adjustable Height Skimmer Chamber

Yes
Yes
Refugium Ready

Yes
Yes
225 micron Thin-mesh Filter Bag
1
1
1
1
Filter Media Cup

1
1
Quick Release cabinet door hinges
