Red Sea MAX E-260 Complete Reef System with ReefLED 90 Lighting & Sump

Red Sea

Shipping calculated at checkout.





Red Sea MAX E-SERIES

Fully Featured REEF-SPEC Open Top Reef Aquariums

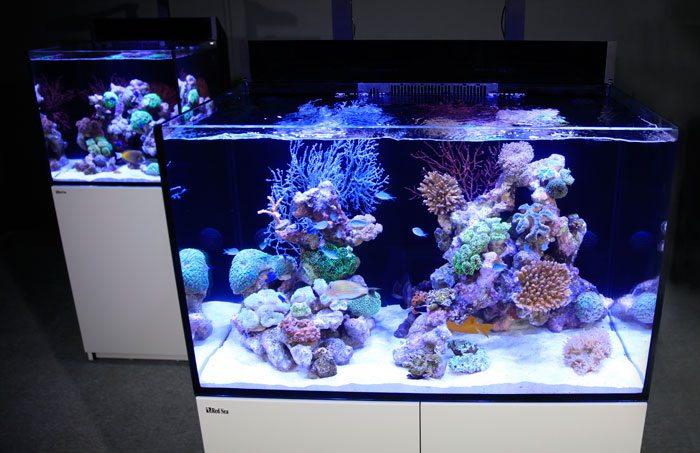

The MAX® E-series combines a contemporary, rimless design with state of the art technology.
The fully-featured REEF-SPEC®  MAX® E system provides everything necessary in order to enable you to enjoy the beauty and diversity of your own piece of thriving coral reef, rather than worrying about component selection, suitability and compatibility.

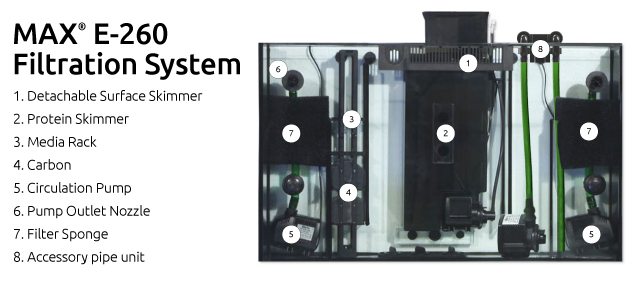

The MAX® E-Series features the very latest in reef-keeping technology including the Red Sea’s all new ReefLED 90™ lighting with Wi-Fi control, REEF-SPEC® filtration and circulation systems, a revolutionary modular sump system and a one-plug control panel.

  • Reef-safe ReefLED™ 90 Lighting with ReefBeat App

  • MAX® E-Series Revolutionary Modular Sump system (patent pending)

  • MAX® E-Series Ultra Clear Glass

  • MAX® E-Series Circulation

  • MAX® E-Series Rear Sump

  • MAX® E-Series Protein Skimmer

  • MAX® E-Series Media Rack

  • Chiller Ready Kit

  • Integrated Power Center

  • MARINE-SPEC Cabinet





Red Sea MAX® E-Series Features


Red Sea MAX® E Model
Specification
Description
170
260
System water volume
Combined aquarium and sump (not including optional sump for
MAX® E)
170 L
(45 gal)
260 L
(69 gal)
Aquarium volume
Display tank
140 L
(37 gal)
213 L
(56 gal)
Rear Sump volume
Rear sump (MAX® E)
30 L
( 8 gal)
47 L
(13 gal)
Aquarium glass thickness
Ultra clear front and side panels
12 mm
(1/2”)
12 mm
(1/2”)
Surface skimmer
 Built in Surface Skimmer with removable combs
√
√
Lighting system
 ReefLED™ 90
1 unit (90W)
2 units (180W)
Lighting control WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC.
√
√
Total circulation lph (gph)  Hidden circulation pumps (not including sump return)
1 x 2150 (570)
2 x 2150 (570)
Protein skimmer  MSK 900: 900 lph (240 gph) water flow – 250 lph (66 gph) air flow
√
√
Chiller installation kit Fittings for easy chiller installation
√
√
Integrated power center Individually switched sockets for pumps and accessories with Circuit Breaker
7 Outlets
7 Outlets
Mechanical filtration Low density sponge filter media
√
 √
Media Rack For rear sump
√
√
Chemical filtration High grade phosphate-free activated carbon
200g
(7 oz)
400g
(14 oz)
Cabinet frame Marine Spec
√
√
Cabinet Compartments  Dedicated chiller compartment (not in E-170 if optional in-cabinet sump installed)
√
√
Length Display tank
60 cm
(24″)
90 cm
(36″)
Width  Display tank   57.5 cm
(22.6″)		 57.5 cm
(22.6″)
Height Display tank  55 cm
(22″)		   55cm
(22″)
Total system height
(excluding LED light unit)		 142 cm
(56″)		 142 cm
(56″)

Optional In-Cabinet Sump

water volume   41 L



(11 gal)

 46 L
(12 gal)
 Water height    20 cm
(8″)		  20 cm
(8″)
 Skimmer chamber   32×30 cm
12.6″x11.8″		 35×32 cm
13.8″x12.6″
 Pump chamber   30×12 cm
11.8″x4.7″		  35×12 cm
13.8″x4.7″
 RO reservoir volume   5.4 L
(1.5 gal)		 8 L
(2.1 gal)
