Kessil AP9X Mounting Arm


  • $ 99.00
    Unit price per

Shipping calculated at checkout.

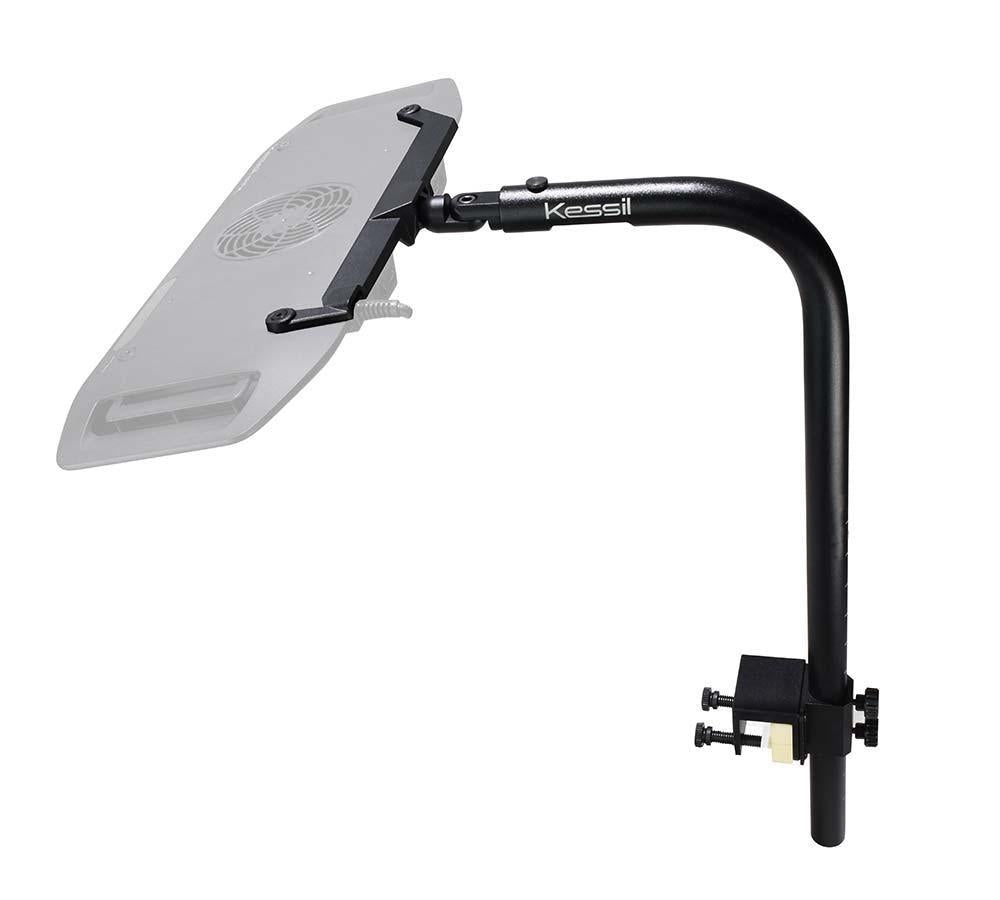

Kessil’s AP9X Mounting Arm is a sleek low profile mounting option for the AP9. With a new integrated swivel joint, shadowing is a thing of the past. This single arm mount allows for 180 degrees of horizontal rotation and 60 degrees of vertical rotation. The AP9 Mounting Arm is also adjustable in heights and from back to front (for 18" - 24" wide tank). Internal cable management routes cords through the arm making it the perfect mounting option for rimmed and rimless tanks.

  • Weight

    2 lb / 0.9 kg

  • Arm Dimensions

    ø 1" x W 12.32" - 15.43"x H 20.78"

  • Maximum Height

    17 inches above surface





What's in the Box

  • AP9X Bracket + Slide Bar (x1)

  • Tooth Lock Washer, M6 (x1)

  • M6 Cap Head Hex Screw, (L=8mm (top),L=12mm (side)) (x1)

  • Arm (x1)

  • Arm Mount (x1)

  • Tube Adapter (x1)

  • M4 Flat head hex socket cap, L=12mm (spare part) (x2)

  • M4 Flat head hex socket cap, L=8mm (x4)

  • Plastic Stepper (x2)

  • M3 Thumb Screw (x1)

  • M5 Flat head Phillips Cap, L=10mm (x4)

  • M5 Thumb Screw (x2)

  • 5mm M6 hex key (x1)

  • 2.5mm M4 hex key (x1)

  • Plastic Thumb Screw 3/8-16 (x2)

  • M4 Wood Screw (x4)
