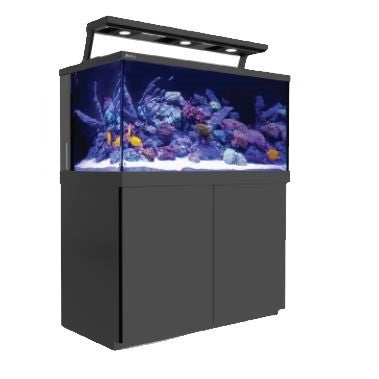

Red Sea MAX S 500 Complete Reef System with ReefLED 90 Lighting

Red Sea

Shipping calculated at checkout.





MAX S-SERIES

Fully featured reef aquariums



Total Reefkeeping Solution

The MAX® S-Series is Red Sea’s flagship reef system and features the very latest in reef-keeping technology.
Red Sea’s all new ReefLED™ lighting, REEF-SPEC® filtration and circulation systems, customizable fascia and a one-plug control center allow you to focus on the beauty and diversity of your own piece of coral reef, rather than worrying about component selection, suitability and compatibility.

Features Include:

  • ReefLED 90 Lighting x 3 (270W)
  • REEFER Protein Skimmer 600
  • Main Return Pump
  • Full width surface skimmer
  • Ultra Clear Glass
  • Integrated Power Center
  • Integrated ATO
  • Micron Filter and 600 gm High-Grade Activated Carbon



Owning a thriving piece of coral reef has never been easier than with Red Sea’s new MAX® S-Series range of aquariums.



Red Sea MAX®S-Series True REEF-SPEC® for a successful reef

The MAX REEF-SPEC® performance criteria is the result of Red Sea’s years of research into the sustainable growth of all corals, including the most delicate “SPS” corals, in an artificial reef environment.

This knowledge, gained over 25 years, forms the basis for the specification of all MAX® Aquarium systems designs.









MAX® S-Series Total Reef Filtration

The complete reef filtration system starts with the surface skimmer that feeds the water to the in-cabinet sump via a flow-regulated, silent flow downpipe. The filtered water is returned to the aquarium by a main system pump that can also supply water to additional filtration systems, an optional chiller and/or reactors.

Connection between the aquarium and sump is via standard union connectors so no plumbing is required.

The MAX® S-System is supplied with the main system pump, a REEFER Skimmer, mechanical and carbon filtration media and all piping including preparation to connect a chiller and auxiliary reactors.

 MAX® S-Series Specification Table


      MAX® S Model
Specification Description MAX® S 400 MAX® S 500 MAX®
S 650
System water volume Combined aquarium and sump 400 L
(110 gal)		 500 L
(135 gal)		 650 L
(175 gal)
Aquarium volume Display tank with rear circulation pump chamber 350 L
(97 gal)		 440 L
(119 gal)		 560 L
(150 gal)
Filtration sump volume Glass sump with preparation for auxiliary reactors or refugium 50 L
(13 gal)		 60 L
(16 gal)		 90 L
(25 gal)
Aquarium glass thickness Ultra clear front and side panels 12 mm
(1/2”)		 12 mm
(1/2”)		 15 mm
( 5/8”)
Surface skimmer Built in suface skimmer on full width of aquarium √ √ √
Lighting system ReefLED™ 90 2 units
(180W)		 3 units
(270W)		 4 units
(360W)
Lighting control WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC. √ √ √
Total circulation l/h (gph) Sump return + hidden individual 2,150 l/h (570 gph) circulation pumps 2×2150 (570) 3×2150 (570) 4×2150(570)
Main system pump l/h (gph) Sump return + feed to skimmer / chiller / reactors 7000
(1850)		 7000
(1850)		 7000
(1850)
Protein skimmer REEFER Skimmer 600 – Air flow 750 l/h (190gph) – Water flow 1500 l/h (400gph) √ √
REEFER Skimmer 900 – Air flow 900 l/h (235gph) – Water flow 2000 l/h (530gph)     √
Integrated power center 10 individually switched sockets for pumps and accessories √ √ √
Integrated water top up system Easy-access storage tank with in-sump float valve 22 L
(6 gal)		 29 L
(7.5  gal)		 38 L
(10 gal)
Mechanical filtration Micron filter 2 2 2
Chemical filtration 600g (20 oz.) high grade phosphate-free activated carbon √ √ √
Cabinet frame Marine spec anodized aluminum profile √ √ √
Cabinet external Weatherproof Polyurethene painted MDF doors & panels √ √ √
Cabinet Internal Waterproof sump compartment, dedicated chiller compartment √ √ √
Length Display tank (MAX® S Including Color Trim) 104 cm
(41″)		 128 cm
(50.5″)		 160 cm
(63″)
Width Display tank (MAX® S Including Color Trim) 70 cm
(27.5″)		 70 cm
(27.5″)		 70 cm
(27.5″)
Height Display tank 64 cm
(25”)		 64 cm
(25”)		 64 cm
(25”)
Total system height (excluding LED light unit) 156 cm
(61″)		 156 cm
(61″)		 156 cm
(61″)
